ANSI/ASME Standard Four-Way Flanged Ball Valve

BV4B-4DF - 150 4 Way Flanged Ball Valve

SPECIFICATIONS
Available Material	CF8M/WCB
Working Pressure	CLASS 150
Ball Bore	Full
End Connection	ASME B16.5 CLASS150
Size Range	CF8M - 1/2" to 6 "
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:PTFE/PTFE+25%GL/PTFE+50%SS/TFM1600/TFM4215

undefined

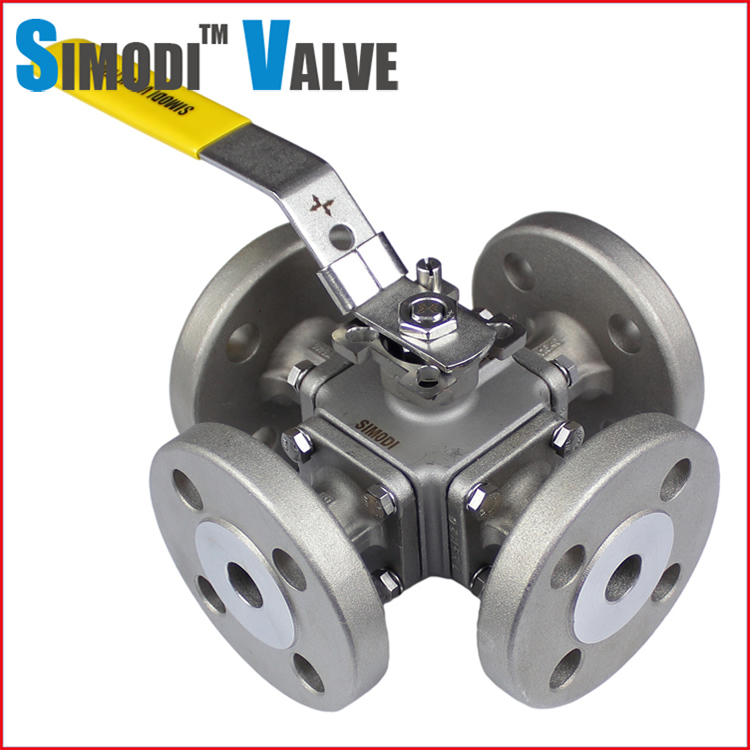

Four-Way Flanged Ball Valve

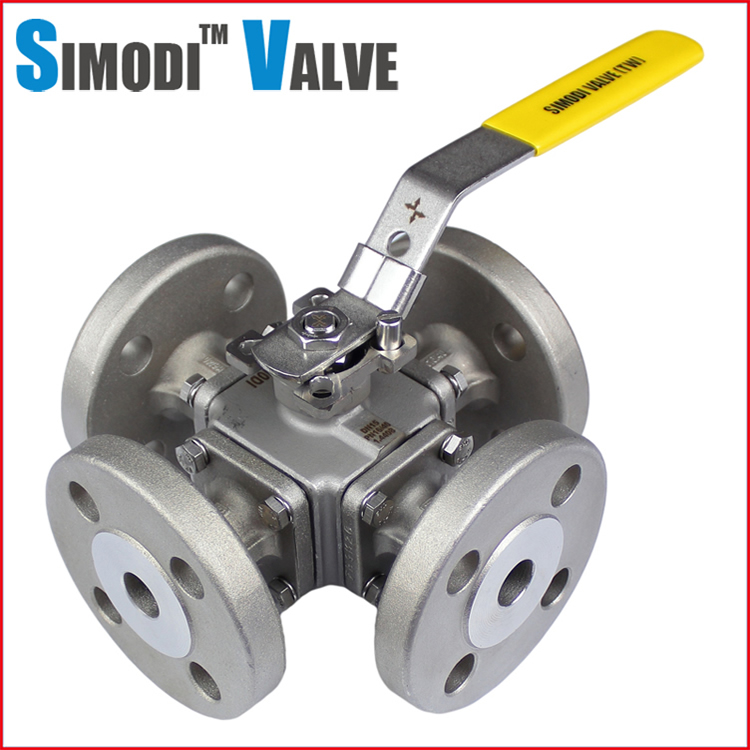

Four Way Flanged Ball Valve

undefined

BV4B-4DF-150 4 Way Flanged Ball Valve

SPECIFICATIONS
* Working Pressure: 1/2”~6”CL150
* Temperature Range: -20～232℃
* Flange End:ANSI B16.50
* Blow-Out-Proof Stem Design
* ISO5211 Direct-Mounting of Actuators of Valves Design
* Locking Device (option)
*Full port I/L/T/X

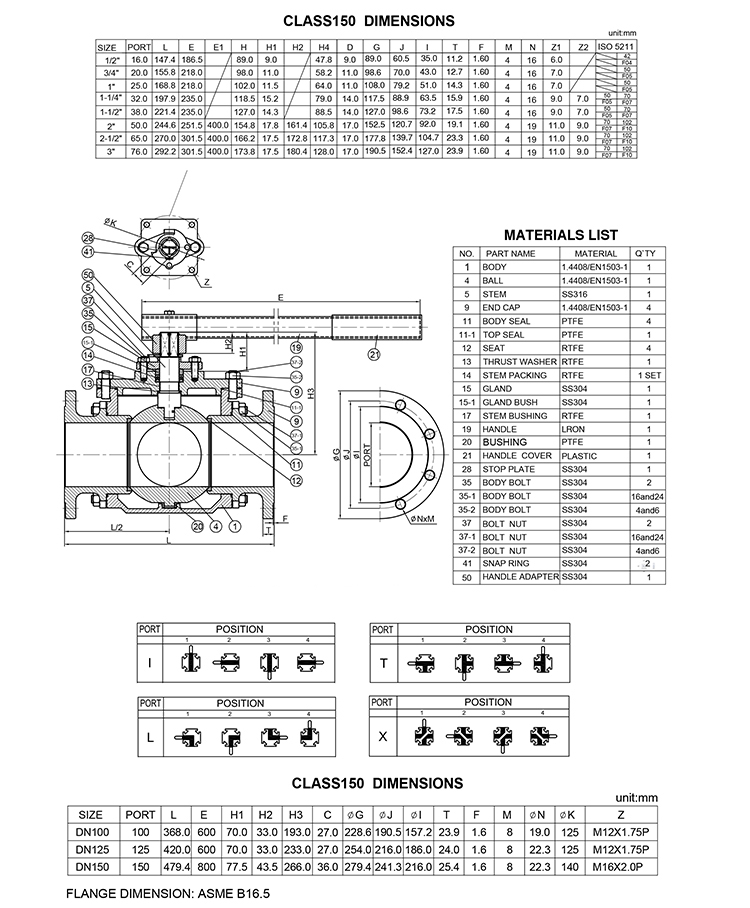

Drawing of Four Way Flanged Ball Valve

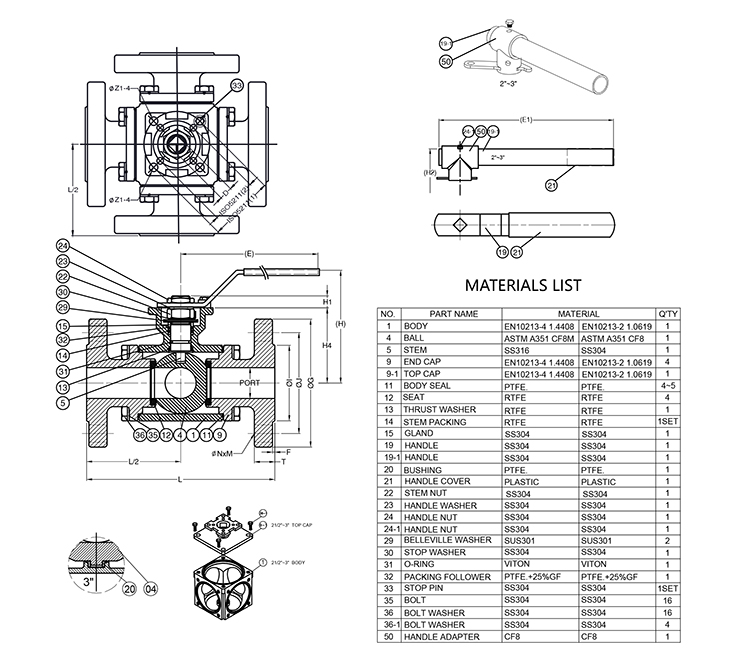

Drawing of Four Way Flanged Ball Valve-1
